Off Centred Tee with Female Thread

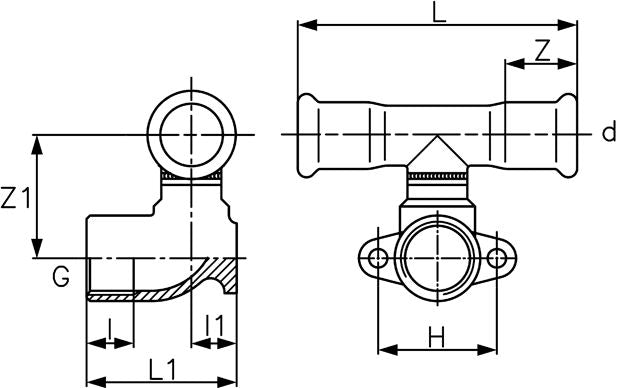

This 90 degree lugged tee utilises an off-centre branch elbow providing a 1/2' female bsp thread on a 15mm pipe. Being off-centre keeps the fitting very low profile.  L is the overall length and L1 is the outside dimension from the lugs to the face of the thread.
