Male Barrel Union Brass Nut EPDM Flat Seal
Male Barrel Union Brass Nut EPDM Flat Seal

Male Barrel Union Brass Nut EPDM Flat Seal

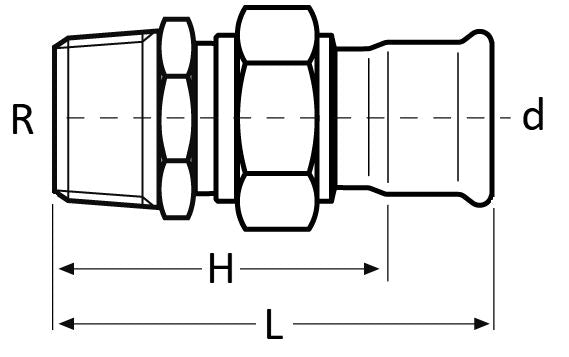

The Male Barrel union provides disconnection  capacity for mounting any female bsp fitting to the union. The 'wetted' surfaces are 316L stainless steel with a brass union nut for a more economical fitting. A flat EPDM seal is standard with FPM or HNBR available as options.  The pipe diameter is D and the male bsp thread is R. The overall length is H with L being the finished distance between the end of the pipe and the end of the male bsp thread.
Size Code QTY
Europress 316L S/S Adaptor Union (Brass Nut) 15mm x 1/2' mbsp SPMQ.015015
Europress 316L S/S Adaptor Union (Brass Nut) 15mm x 3/4' mbsp SPMQ.015020
Europress 316L S/S Adaptor Union (Brass Nut) 22mm x 1/2" mbsp SPMQ.022015
Europress 316L S/S Adaptor Union (Brass Nut) 22mm x 3/4' mbsp SPMQ.022020
Europress 316L S/S Adaptor Union (Brass Nut) 22mm x 1' mbsp SPMQ.022025
Europress 316L S/S Adaptor Union (Brass Nut) 28mm x 1' mbsp SPMQ.028025
Europress 316L S/S Adaptor Union (Brass Nut) 35mm x 1 1/4' mbsp SPMQ.035032
Europress 316L S/S Adaptor Union (Brass Nut) 42mm x 1 1/2' mbsp SPMQ.042040
Europress 316L S/S Adaptor Union (Brass Nut) 54mm x 2' mbsp SPMQ.054050
