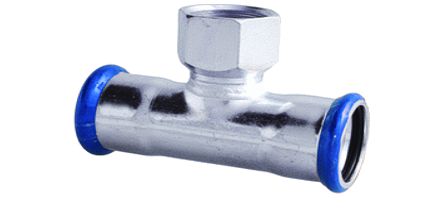

Female Centred Tee
Female Centred Tee

Female Centred Tee

The Female Centred Tee provides a female bsp threaded outlet - Rp  into a larger main line -d - and has a shoulder  for location of correct insertion depth - Z. L is the overall length and L1 is the dimension from the centre line of the main line to the face of the threaded outlet, while Z1 is from that same centre line to the bottom of the inserted bsp thread.
Size Code QTY
Europress 316L S/S Tee 15mm x 1/2' fbsp SPFT.015015
Europress 316L S/S Tee 22mm x 1/2' fbsp SPFT.022015
Europress 316L S/S Tee 22mm x 3/4' fbsp SPFT.022020
Europress 316L S/S Tee 28mm x 1/2' fbsp SPFT.028015
Europress 316L S/S Tee 28mm x 3/4' fbsp SPFT.028020
Europress 316L S/S Tee 28mm x 1' fbsp SPFT.028025
Europress 316L S/S Tee 35mm x 1/2' fbsp SPFT.035015
Europress 316L S/S Tee 35mm x 3/4' fbsp SPFT.035020
Europress 316L S/S Tee 35mm x 1 1/4' fbsp SPFT.035032
Europress 316L S/S Tee 42mm x 1/2' fbsp SPFT.042015
Europress 316L S/S Tee 42mm x 3/4' fbsp SPFT.042020
Europress 316L S/S Tee 42mm x 1 1/2' fbsp SPFT.042040
Europress 316L S/S Tee 54mm x 1/2' fbsp SPFT.054015
Europress 316L S/S Tee 54mm x 3/4' fbsp SPFT.054020
Europress 316L S/S Tee 54mm x 2' fbsp SPFT.054050
Europress 316L S/S Tee 76.1mm x 3/4' fbsp SPFT.076020
Europress 316L S/S Tee 76.1mm x 2' fbsp SPFT.076050
Europress 316L S/S Tee 88.9mm x 3/4' fbsp SPFT.089020
Europress 316L S/S Tee 88.9mm x 2' fbsp SPFT.089050
Europress 316L S/S Tee 108mm x 3/4' fbsp SPFT.108020
Europress 316L S/S Tee 108mm x 2' fbsp SPFT.108050
