Elbow 90° short radius 1.2d
Elbow 90° short radius 1.2d

Elbow 90° short radius 1.2d

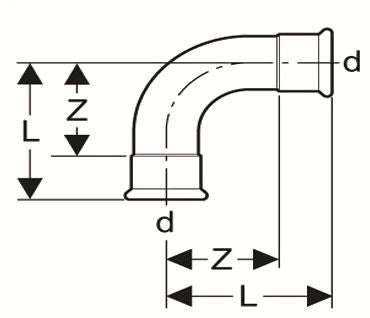

These are the short radius elbows, being 1.2 x the diameter of the relevant pipe size  designed for joining  pipes of equal diameter. L is the dimension from the centre line of one pipe to the other end of the fitting. Z  is the dimension from the centre line of one pipe to the end of the other pipe.
Size Code QTY
Europress 316L S/S Elbow 35mm R = 1.2d SPP8.000035
Europress 316L S/S Elbow 42mm R = 1.2d SPP8.000042
Europress 316L S/S Elbow 54mm R = 1.2d SPP8.000054
Europress 316L S/S Elbow 76.1mm R = 1.2d SPP8.000076
Europress 316L S/S Elbow 88.9mm R = 1.2d SPP8.000089
Europress 316L S/S Elbow 108mm R = 1.2d SPP8.000108
