Elbow 90° radius 1.5d

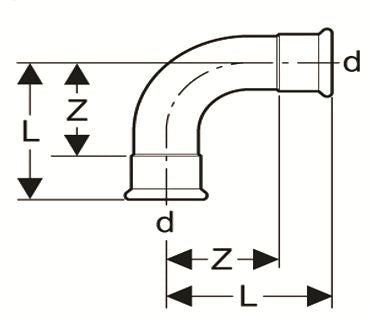

These are the long radius elbows, being 1.5 x the diameter of the relevant pipe size  designed for joining  pipes of equal diameter. L is the dimension from the centre line of one pipe to the other end of the fitting. Z  is the dimension from the centre line of one pipe to the end of the other pipe.
