Stainless Steel - ANSI Backing Ring - Class 150
Stainless Steel - ANSI Backing Ring - Class 150

Stainless Steel - ANSI Backing Ring - Class 150

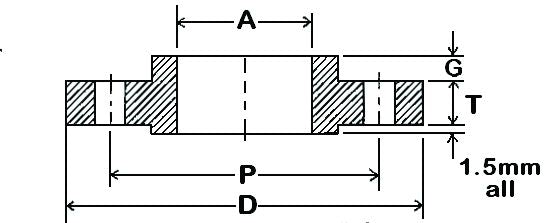

The Stainless Steel Backing Rings are designed to slip over the small Adaptor Flange (small) pipe size up to 42mm, or the Stub Flange from pipe sizes 76.1 to 168.3   These flanges match series ANSI Class 150   For 304 grade Stainless Steel substitute 4 instead of 6 in code, eg SBA4.000xxx
Size Code QTY
Europress 316 Stainless SteelBacking Ring suit 15mm (1/2") SBA6.000015
Europress 316 Stainless SteelBacking Ring suit 22mm (3/4") SBA6.000020
Europress 316 Stainless SteelBacking Ring suit 28mm (1") SBA6.000025
Europress 316 Stainless SteelBacking Ring suit 35mm (1¼") SBA6.000035
Europress 316 Stainless SteelBacking Ring suit 42mm (1½") SBA6.000040
No Stub flange to suit. Only use Adaptor Flange this size SBA6.000050
Europress 316 Stainless SteelBacking Ring suit 76.1mm (2½") SBA6.000075
Europress 316 Stainless SteelBacking Ring suit 88.9mm (3") SBA6.000089
Europress 316 Stainless SteelBacking Ring suit 108mm (4") SBA6.000100
Europress 316 Stainless SteelBacking Ringsuit 139.7mm (5") SBA6.000125
Europress 316 Stainless SteelBacking Ring suit 168.3mm (6") SBA6.000150
