Adaptor with Female Thread
Adaptor with Female Thread

Adaptor with Female Thread

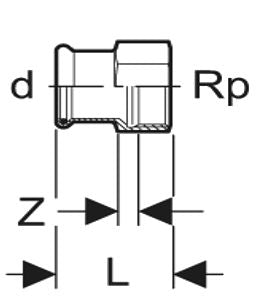

The Female Adaptor provides a female bsp thread - Rp - onto any pipe with diameter - d. L is the overall length and H is the length from the end of the inserted thread to the end of the inserted pipe.
Size Code QTY
Europress 316L S/S Female Adaptor 15mm x 1/2'' fbsp SPF0.015015
Europress 316L S/S Female Adaptor 15mm x 3/4'' fbsp SPF0.015020
Europress 316L S/S Female Adaptor 22mm x 1/2'' fbsp SPF0.022015
Europress 316L S/S Female Adaptor 22mm x 3/4'' fbsp SPF0.022020
Europress 316L S/S Female Adaptor 22mm x 1'' fbsp SPF0.022025
Europress 316L S/S Female Adaptor 28mm x 3/4'' fbsp SPF0.028020
Europress 316L S/S Female Adaptor 28mm x 1'' fbsp SPF0.028025
Europress 316L S/S Female Adaptor 28mm x 1 1/4'' fbsp SPF0.028032
Europress 316L S/S Female Adaptor 35mm x 1'' fbsp SPF0.035025
Europress 316L S/S Female Adaptor 35mm x 1 1/4'' fbsp SPF0.035032
Europress 316L S/S Female Adaptor 35mm x 1 1/2'' fbsp SPF0.035040
Europress 316L S/S Female Adaptor 42mm x 1 1/4'' fbsp SPF0.042032
Europress 316L S/S Female Adaptor 42mm x 1 1/2'' fbsp SPF0.042040
Europress 316L S/S Female Adaptor 54mm x 1 1/2'' fbsp SPF0.054040
Europress 316L S/S Female Adaptor 54mm x 2'' fbsp SPF0.054050
