When most people think about a compressed air pipe system, they picture aluminium or stainless steel pipework running overhead through a workshop or production facility.
But that's not always the best option.
For many industrial sites, compressed air needs to travel long distances between buildings, workshops, processing plants, utility areas, and remote equipment. In these situations, installing a compressed air pipe underground can provide significant advantages in terms of protection, reliability, and site safety.
The key is choosing the right pipe material and designing the system correctly from the start.
What Is an Underground Compressed Air Pipe System?
An underground compressed air pipe system is exactly what it sounds like – compressed air pipework buried below ground rather than mounted overhead or along walls.
These systems are commonly used to connect:
- Manufacturing facilities
- Processing plants
- Maintenance workshops
- Mining infrastructure
- Water treatment plants
- Agricultural processing facilities
- Remote industrial equipment
By routing compressed air underground, businesses can protect critical infrastructure while creating cleaner and safer work environments.
Why Install Compressed Air Pipe Underground?
Better Protection Against Damage
One of the biggest advantages of underground compressed air pipe systems is protection.
Unlike exposed pipework, buried pipe is protected from:
- Forklift traffic
- Vehicle impacts
- Accidental mechanical damage
- Harsh weather conditions
- Future site modifications
In busy industrial environments, protecting your compressed air pipe can significantly reduce maintenance costs and unexpected downtime.
Cleaner Facility Layouts
Overhead compressed air pipe systems often require:
- Pipe bridges
- Support structures
- Suspended brackets
- Additional framework
Underground installation removes much of this visible infrastructure, helping create a cleaner and more organised site.
Improved Workplace Safety
Every exposed pipe run introduces potential hazards.
By placing compressed air pipework underground, facilities reduce risks associated with overhead structures, accidental impacts, and congested service corridors.
Long-Term Reliability
When the correct pipe material is used, underground compressed air systems can deliver decades of reliable performance with very little maintenance.
The Challenges of Underground Compressed Air Systems
While underground compressed air pipework offers many advantages, there are several factors that must be considered during design and installation.
Condensate Management
Every compressed air system produces moisture.
As compressed air cools while travelling through the distribution network, condensate forms inside the pipework.
If not properly managed, condensate can cause:
- Pressure loss
- Reduced air quality
- Equipment damage
- Increased maintenance requirements
This is why drain valves and purge points are essential components of any underground compressed air pipe system.
Ground Movement
Buried pipework is constantly exposed to:
- Soil settlement
- Ground movement
- Thermal expansion and contraction
- Vibration
Rigid piping materials can struggle under these conditions and may crack or fail over time.
Corrosion
Traditional galvanised steel compressed air pipe has long been used underground, but corrosion remains a major issue.
Over time, steel pipework can suffer from:
- Internal rust
- External corrosion
- Reduced airflow
- Air contamination
- Expensive repairs
This is one of the main reasons many industrial facilities are moving towards modern PE100 compressed air pipe systems.

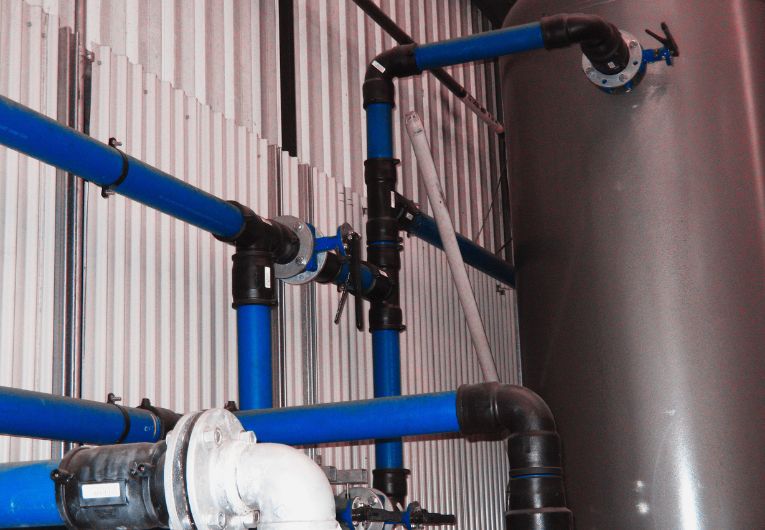

Why maXair PE100 Is Ideal for Underground Compressed Air Pipe Installations
Corrosion-Free Performance
Unlike steel pipework, maXair PE100 does not rust or corrode.
This helps maintain:
- Clean compressed air
- Consistent airflow
- Reduced maintenance costs
- Longer system life
For facilities looking to minimise ownership costs over the life of the installation, this can be a significant advantage.
Flexibility That Absorbs Ground Movement
PE100 pipe has natural flexibility, allowing it to accommodate minor ground movement without cracking.
This makes it particularly suitable for underground infrastructure projects where soil conditions may change over time.
High Impact Resistance
Manufactured from high-strength PE100 material, maXair offers excellent resistance to impact damage.
Unlike PVC pipe, which can become brittle and crack, PE100 remains durable and resilient in demanding industrial environments.
Minimum 50-Year Design Life
Maxair is manufactured from virgin PE100 material and complies with:
- AS/NZS 4130
- AS/NZS 4131
When correctly installed and operated within its design parameters, the system offers a minimum 50-year design life.
Underground Compressed Air Pipe Installation Best Practices
Install Pipework in Sand Bedding
A sand bedding layer provides even support and protects the pipe from sharp rocks and point loading.
This helps improve long-term system reliability.
Maintain Correct Pipe Grade
Underground compressed air pipe should be installed with sufficient grade to minimise low points where condensate can collect.
Install Drain Valves and Purge Lines
Condensate management is critical.
Strategically placed drain valves and purge lines allow moisture to be removed before it affects airflow, pressure, or equipment performance.
Underground vs Above-Ground Compressed Air Pipe
While both installation methods have their place, underground systems often provide advantages where protection and aesthetics are priorities.
Benefits of underground compressed air pipe include:
- Better protection from impact damage
- Reduced weather exposure
- Cleaner site appearance
- Improved safety
- Long-term durability
Above-ground systems can offer easier access for maintenance, but underground systems often deliver superior protection in busy industrial facilities.
Typical Applications for Underground Compressed Air Pipe
Underground compressed air pipe systems are commonly used in:
- Manufacturing facilities
- Food processing plants
- Mining operations
- Water treatment facilities
- Utilities infrastructure
- Agricultural processing plants
- Remote industrial sites
Any facility that needs to transport compressed air between buildings or over long distances can benefit from underground installation.
Why More Facilities Are Choosing PE100 Compressed Air Pipe
The move away from traditional metal pipe systems continues to accelerate.
Facilities are looking for compressed air pipe solutions that offer:
- Corrosion resistance
- Lower maintenance
- Long service life
- Faster installation
- Improved reliability
If you're planning a new compressed air installation or upgrading an ageing network, maXair provides a reliable and cost-effective solution for underground compressed air pipe systems.
